Discs must be kept clean without rust , oil , grease or any other dirt etc .
it should be free of any deep scratches that may affect performance
Brembo single Ø 320 mm fixed disc
Diameter 320mm
thickness new 4.0mm
max wear limit 3.4mm
Rear brake disc
Brembo single Ø 230 mm fixed disc
Diameter 250mm
thickness new 4mm
max wear limit 3.4mm

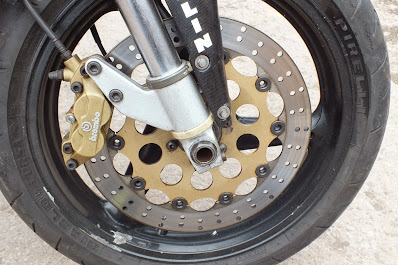

Front Brake discs are semi floating , consist of 2 parts one part attached to wheel and the breaking band ( some models have fully floating .)
for more on Floating brake discs see below
To see Cagiva Mito brake discs for sale try Ebay UK here
.JPG "Cagiva Mito 125 Brake disc wear limits")
.JPG "Cagiva Mito 125 Brake disc wear limits")
=================================================
.jpg "Cagiva Mito 125 Brake disc wear limits")
=================================================
Fixed and Floating Brake Discs
There are three principal types of motorcycle brake discs: fixed, fully floating & semi floating.
A fixed brake disc is a one piece brake disc. That is, its brake pad contact face and wheel mounting face are all part of the same piece of metal. They are relatively cheap to produce and they perform perfectly well within certain parameters, but if they are subjected to serious heat then they are unable to dilate or expand because they are not floating.
Both fully_floating_brake_discs and semi-floating_brake_discs are constructed in two parts. An aluminium centre part which is fixed to the motorcycle wheel and a stainless rotor part which the brake pads push on.
When the rotor is subjected to serious heat it expands. By allowing it to float separately from the mounting face it is free to expand and shrink again at will without being constrained by its mounting. When this expansion takes place is does so in all directions at once and it will not be constrained. If you prevent this from happening in one direction (by fixing it on its mounting face) it has no choice but to warp, so floating_discs and semi-floating_discs are made in two parts to allow the discs to expand and prevent them from warping. This is mainly a high performance type brake disc.
Bikes of more moderate performance can use fixed brake discs perfectly happily and you will also see that most rear brake discs are fixed. This is because they don’t get used as hard and therefore subjected to as much heat. Even so, most rear brake discs are thicker than front brake discs and this is a compromise because the cooling is not as good as the front discs. They don’t get as hot but don’t cool as well either, so the thicker material helps prevent them from warping.
