Cagiva Mito Electronic ignition system components
The ignition system on a Cagiva Mito is the heart of its performance. Whether you are running a classic analog setup or the later Electronic Control System (ECS), understanding these components is vital for diagnosing a "no spark" or "poor running" issue.
Core Ignition Components
Generator (12v 120w): Located on the side of the engine. It houses the stator and pick-up coil. The pick-up coil sends the signal to the CDI to trigger the spark. This can be rotated to adjust base ignition timing.
CDI Unit (Capacitor Discharge Ignition): The "brain" of the bike, located under the tank on the left-hand side. It computes timing maps based on engine RPM.
HT Coil: Bolted to the oil/coolant bottle. It transforms 12V into roughly 20,000V+ to jump the spark plug gap.
Voltage Regulator: Found on the rear subframe. It converts high-voltage AC from the generator into a steady <14V DC to charge the battery and run the lights.
ECS (Electronic Control System) Integration
On later Mito models (like the SP525), the ignition is integrated with the ECS. This adds several electronic layers that can affect your spark and timing:
TPS (Throttle Position Sensor): Feeds throttle data to the ECU to adjust the ignition curve. A faulty TPS can cause "flat spots" or stuttering.
Oil Pump Solenoid: If the ECS detects a failure here, it may retard the ignition timing significantly to protect the engine from seizing.
Battery Sensitivity: The ECS is extremely voltage-sensitive. If your battery drops below 12.4V, the ignition system may behave erratically or enter a "limp mode."
Quick Troubleshooting Checklist
Kill Switch: Always the first thing to check if you have no spark!
Spark Plug: Use an NGK BR9ES. Ensure the gap is correct.
Grounds: Check the earth strap to the engine casing; a loose ground is a common cause of CDI failure.
Cagiva mito Electronic ignition system consists of
Generator 12v 120w - Pick up coil , generator the electricity to run the ignition system and is located on the side of the engine this can also be altered to adjust timing of the spark .
see our post on testing the generator and pick up coil here .
HT Coil , generates the spark bolted to oil/coolant bottle , it does this buy collapsing a 12v coil system , which then transforms 12v to 20,000 volts or so , enough voltage to leap the spark plug gap .
See recent post on how to test these here
CDI unit , computes via maps and signals , the spark timing / duration , bolt to wiring loom cover on left hand
side of frame under tank .
you can buy programmable aftermarket add ons see here

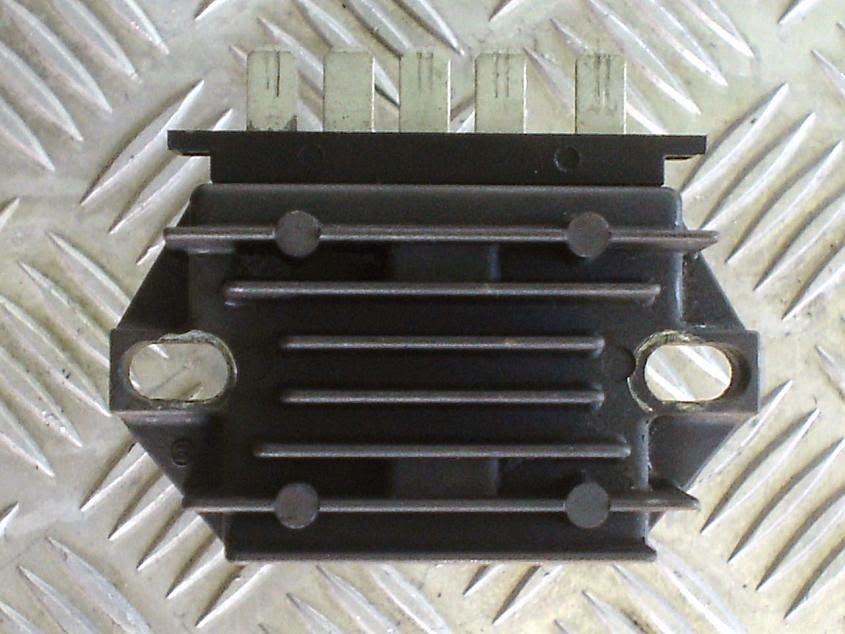

Voltage regulator , located on the rear subframe under the seat fairing panel left hand side of bike this regulates and rectifies the Electricity generated but rotor / stator as engine turns .
It converts 50V + AC current to Less than 14v DC current .
Kill switch , worth testing is you have no spark
