Cagiva Mito 125 How to remove the flywheel / rotor

Cagiva mito 125 for sale here on Ebay UK


Cagiva mito 125 parts for sale here on Ebay UK



I see this asked a lot , yet its one of the most easy jobs to do , its just one nut , but you do need a special tool buy this tool on Ebay UK is only a way of applying force to the flywheel to pull it of the crank .some people locktite the flywheel nut and  flywheel on too, i have come across this many times and it is frustrating and can take a lot of force to remove , why they do this i do not know , i have had a few Cagiva Mito shred the woodruff key area and shear the woodruff key itself causing bad running through ignition timing moving , maybe this is why they load them up with loctite , i do not,  just fit a new wood ruff key if needed and torque nut to require specs

New Cagiva Mito 125 woodruff keys on Ebay UK here



Cagiva Mito 125 How to remove the flywheel / rotor

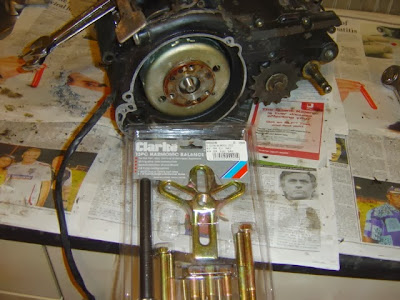

you will need this flywheel removal tool you can get them off ebay uk for about £20 you can buy cheaper universal ones as well.


i have both but prefer to use a specific tool for each bike i work on if possible .




Cagiva Mito 125 How to remove the flywheel / rotor




first remove side cover , make sure this is fully intact , i have had a lot of Mito in and these were split or had large chunks out , lets water in (not good for electrics) and make sure you undo all of the covers bolts , do not snap one off like i usually see .

                            remove starter bendix and starter ring

                         r  Cagiva Mito 125 How to remove the flywheel / rotor

Cagiva Mito 125 How to remove the flywheel / rotor

Cagiva Mito 125 How to remove the flywheel / rotor

Cagiva Mito 125 How to remove the flywheel / rotor

                                  undo flywheel nut at this point as well

Cagiva Mito 125 How to remove the flywheel / rotor

 make sure cranks is locked into position to avoid movement and            damage while you apply pressure with you socket wrench.

Cagiva Mito 125 How to remove the flywheel / rotor

set your puller up with correct bolts and make sure puller is set up                   as instructions suggest and its stable solid on the crank.

Cagiva Mito 125 How to remove the flywheel / rotor

Cagiva Mito 125 How to remove the flywheel / rotor

                                                   Buy this puller from Ebay UK here

Cagiva Mito 125 How to remove the flywheel / rotor

it should pop off easy unless it has been Loctite into position in which case it might take a fair bit of force .

Cagiva Mito 125 How to remove the flywheel / rotor

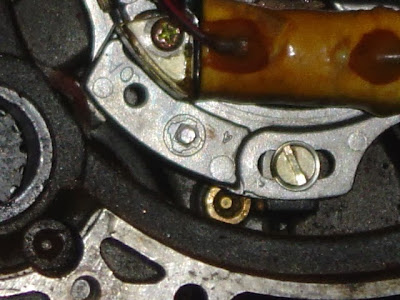

That is it , its a simple job if you have to go further and remove the stator make sure you mark the timing with a scribe or with white Tipex or similar so you can retime you engine easily on refitting

Cagiva Mito 125 How to remove the flywheel / rotor

Cagiva Mito 125 How to remove the flywheel / rotor

Cagiva Mito 125 How to remove the flywheel / rotor

Cagiva Mito 125 How to remove the flywheel / rotor

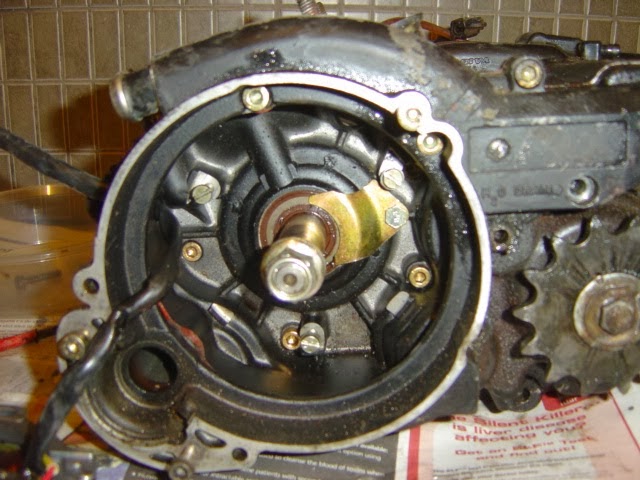

refitting , just do the reverse , make sure timing marks are not

 cleaned off and refit aligned , as long as woodruff key is fitted well

 and everything goes back ok its should be no problems whatsoever.


also a common one is fitting the flywheel without the woodruff key

 or it falls out

just as you fit it , or a sheared woodruff key or woodruff key area

which fails to lock flywheel in place .
