Cagiva Mito starter motor post







I am going to collect info here on Refurbing starter motors for the Cagiva Mito 125

I was hoping to do a full rebuild on this on but all it took was a bit of oil on the bearings and a good clean out and re-lube where needed .


But its quite easy to change the brushes and bearing on these stater motors and can save a lot of money .


Cagiva Mito starter motor post

Getting in is easy just three PH1 screws

Cagiva Mito starter motor post

here you see the brushes holder plate i cannot find these to but if anyone know let me
know and ill link to it .  i use sizes 5mm wide 8mm high 15mm long

Cagiva Mito starter motor post

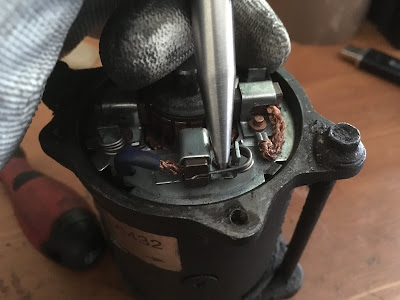

here i am undoing the Brushes spring clip

Cagiva Mito starter motor post

one you undo the main positive side brushes you can remove plate

Cagiva Mito starter motor post

here are the positive side brushes the current  goes thought the connector on side of
starter then through the field windings and then into the armature via the brushes
then out again via the opposite side brushes

Cagiva Mito starter motor post

the negative side brushes are  on the plate
and although it would be easy to change plate fiding them are hard
i usually ......

Cagiva Mito starter motor post


Cut the old one off at spade connector then grind connector flat
clean surfaces and re-solder the new brushes to this connector
i did not have to do it this time but i will in the future .

Cagiva Mito starter motor post

To change the Positive side brushes you will need to remove armature and winding
undo all the securing screws


Cagiva Mito starter motor post

remove drive gear retaining clip and gear

Cagiva Mito starter motor post

  armature will come out and then you can access the brushes
 connector you need to clean and flux and then solder in new brushes
                       DONT FORGET THE INSULATION


that is all i have now ill update this when i do a full stater motor refurb and solder in new brushes but have a go its quite easy .
