Cagiva Mito 125 starter relay testing , how to test

click here to view Cagiva  Mito 125 parts on Ebay UK or Here on Amazon UK







Buy Cagiva Mito starter relays and solenoids here


Testing a starter relay is quite easy.

basic equipment needed is 12v battery with 2 x wire i use crocodile clips .

you can also use a small test bulb as well .

Cagiva Mito 125 starter relay testing , how to test

or you can invest in good and safer tool like the 12v power probe and
snap of test light probe i bought and are excellent .


Cagiva Mito 125 starter relay testing , how to test

i always have a fully charged 12cv battery with crocodiles knocking about it saves loads of hassle


Cagiva Mito 125 starter relay testing , how to test

The relay , the small terminals are what connect to your starter button and
carry a lot less current .

the larger terminals are connected direct from battery to the starter motor so
need larger wires to carry the massive starting currents .


Cagiva Mito 125 starter relay testing , how to test

Cagiva Mito 125 starter relay testing , how to test

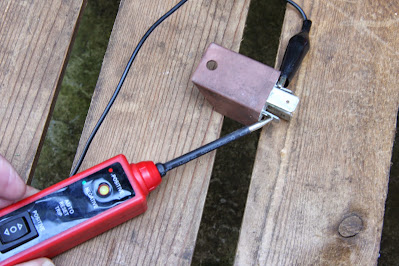

I am using the power probe here as its safer but you can just as easily
connect the 12v negative to one side and tap the positive on the other side

you should hear a click as you touch the positive and remove it .


Cagiva Mito 125 starter relay testing , how to test

You can go a step further and add a test light to it and confirm current it
going through the secondary circuit .




to test with a lamp you need to connect one end on test light circuit to
battery positive and the to one of the relays larger terminals
and then use another cable from second larger terminal to negative of battery
ill do basic circuit diagrams at bottom of page .

Cagiva Mito 125 starter relay testing , how to test

Cagiva Mito 125 starter relay testing , how to test


Now when you put power to the smaller terminals it should click but also
the light should flash on and off as you tap power .



OK not the best , never have been very good with Windows Paint



Cagiva Mito 125 starter relay testing , how to test
